Pantographe Bed

Technical specifications

Minimum height 220 mm
Maximum height 760 mm
Head-down position (Trendelenburg) 12,8°
Head up position (Anti-Trendelenburg) 17°
Unloaded weight 90 kg
Length of bed extension 185 mm
Maximum capacity 200 kg
Supply voltage 240 V – 50 Hz
Voltage in use 24 VCC
IP protection rating IP X4
Useful surface of sleeping 2010 x 905 mm
Electric class 1B

Manual command

All positions of care or comfort are available directly with the wired remote control, easy to use. Always accessible for the resident or nursing staff with flexible support. Easily disconnectable.

Front Panel

A small footprint with the possibility of removing the panel.

Frame

A comfortable bed with a removable slatted frame or optional compact bed base.

Variable height

A low position at 22 cm for safe bed rest. A high position 76cm to care for the right back and avoid any risk of low back pain. An adaptable length with a sommier extension for tall people.

Original equipment

A high level of original equipment while remaining an economical solution.

Lateral barrier

Always more safety and autonomy for the residents, comfort of use for the nursing staff, with our 2 concepts of barriers: barrier three-quarter or half-barrier.

Frame

A free frame underneath to allow the passage of a table to eat in bed or a patient lift

Positions

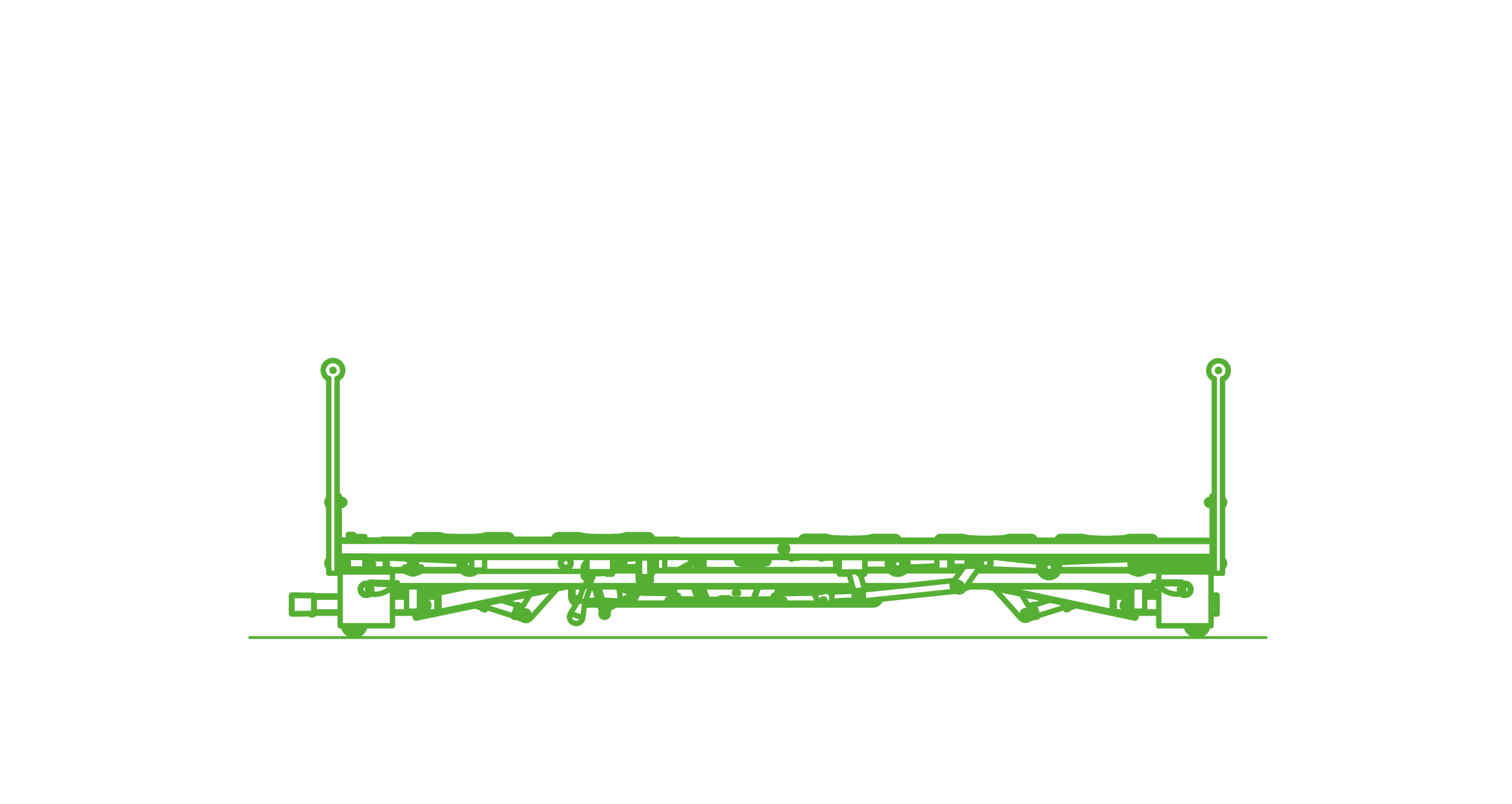

  • Low position

    22 cm to secure the patient

  • High position

    76 cm to carry out the care

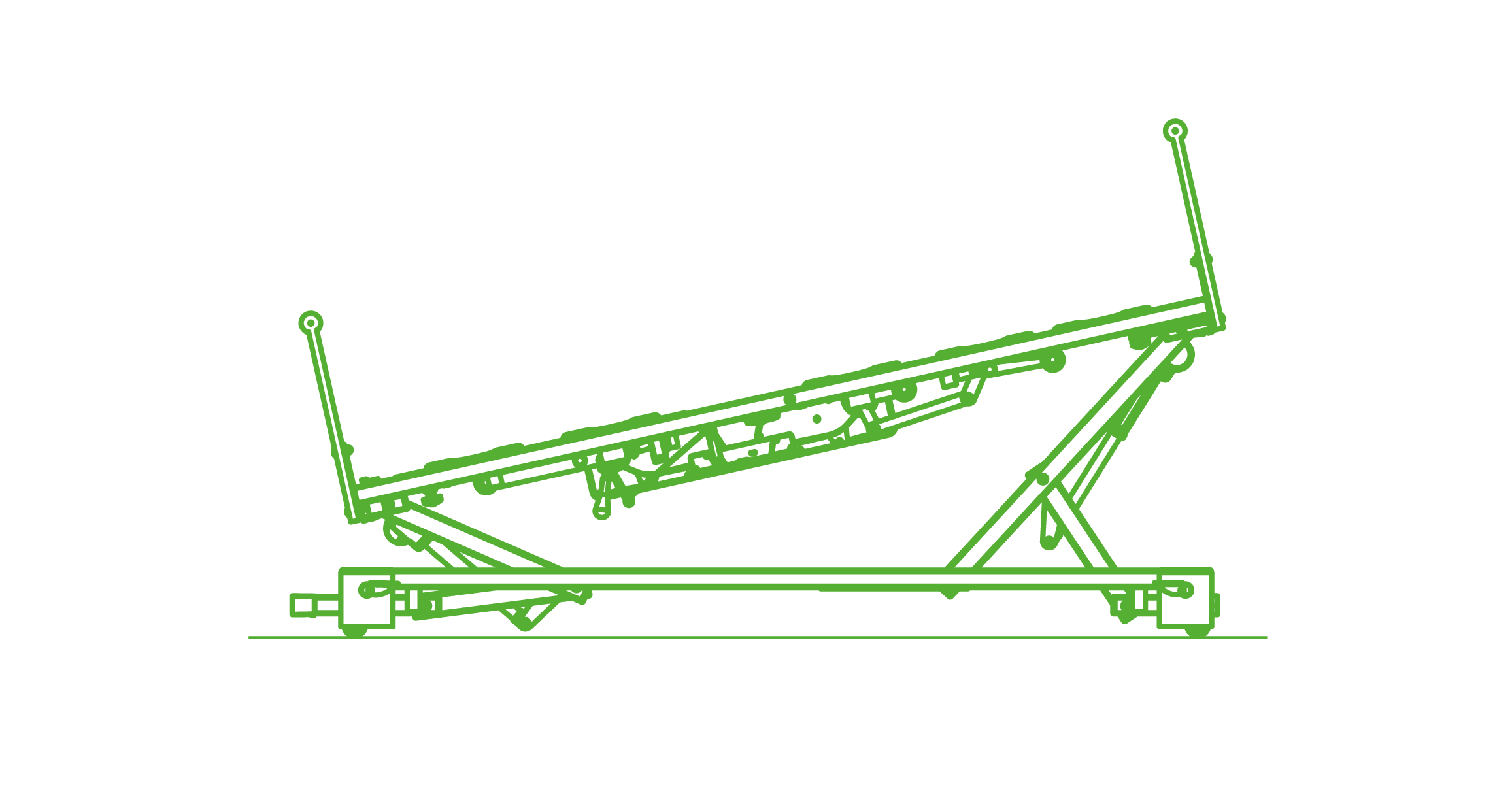

  • Declive position

    to reposition the patient in bed in case of emergency

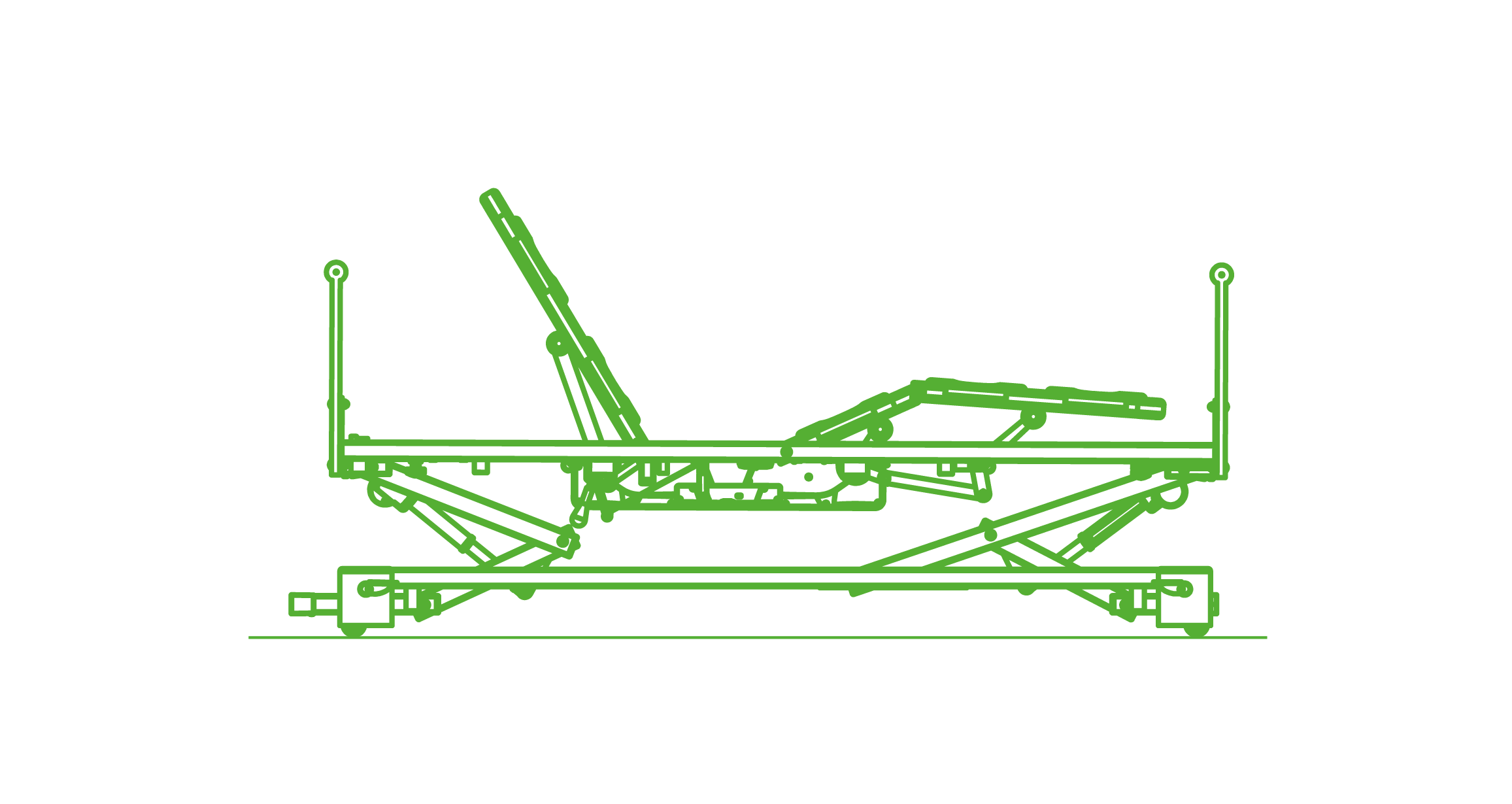

  • Fowler Position

    to relieve pressure points in case of prolonged bed rest

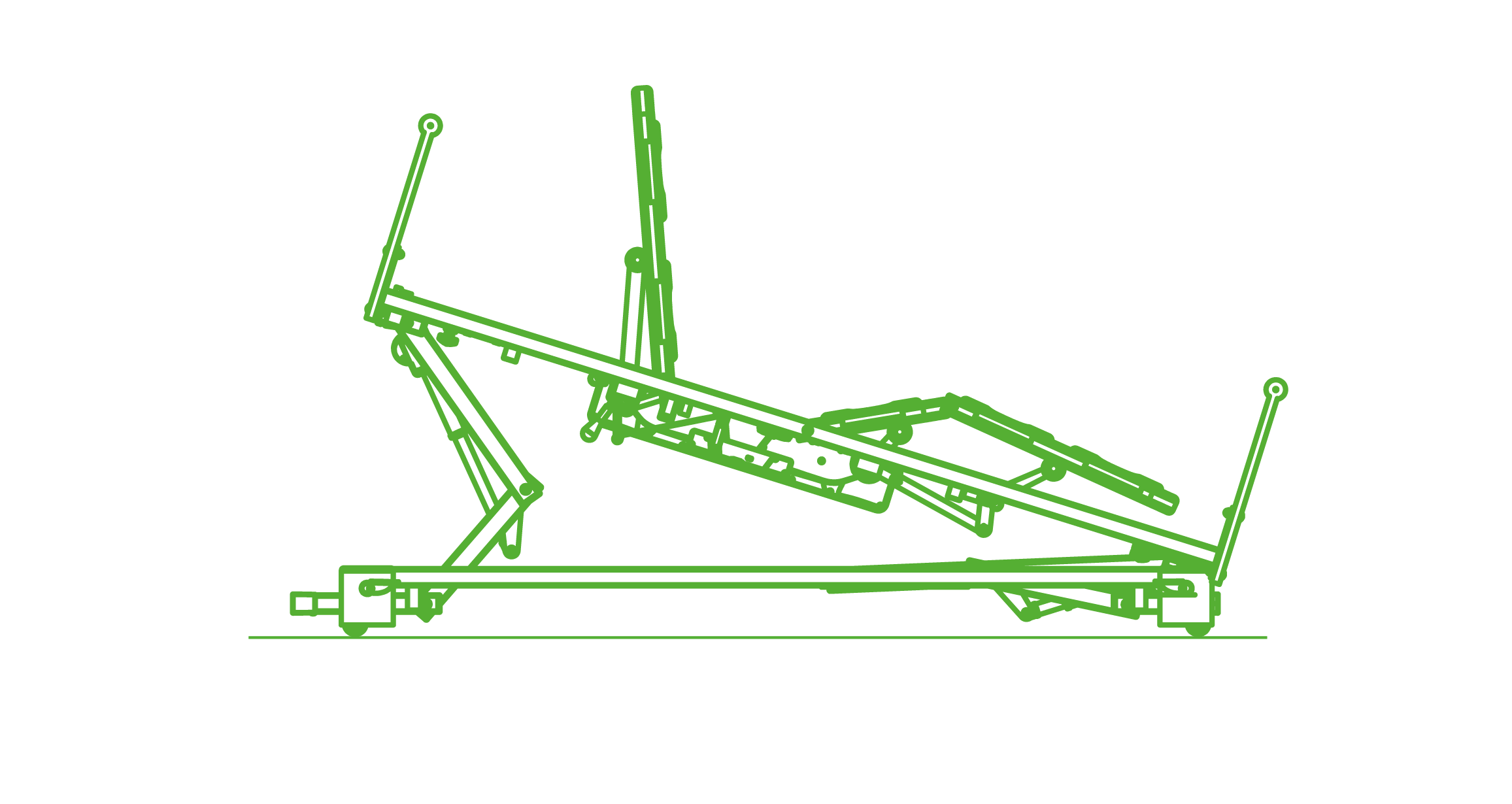

  • Armchair Position

    for the well-being of the patient through a change of compression points

Do you have a project for your retirement home?
